A shackle is an integral component of the suspension system that attaches between the leaf spring and the vehicle frame. It allows for the leaf spring to work through length changes during suspension articulation. The leaf packs, or leaf springs, position and center the axle under the vehicle. Jun 04,  · A leaf spring shackle is a free-hanging connector used in leaf spring suspension systems. Leaf spring shackles connect the springs to the vehicle frame. This small but critical component allows the leaf springs to flex and adjust as you drive. What Does a Leaf Spring Shackle Do?

Before going into the details of what a Spring Leaf Shackle is, we first need to understand what a Spring Leaf is. They were originally called carriage or laminated springs.

The spring leaf is made up of an arc-shape, slender piece of steel that is stacked with the same material in smaller sizes and bolted together creating a reinforced bow-like item. It is then attached to the rear axle and the chassis providing support to any additional weight that is added to a vehicle, preventing the axle from buckling in and snapping from the pressure of an extreme amount of weight that it was not originally designed to carry.

The what is the official language of gabon purpose of a leaf spring is to provide support for a vehicle. It also provides for a smoother ride absorbing any bumps or potholes in the road. Leaf springs are also used to locate the axle and control the height at which the vehicle rides and helps keep the tires aligned on the road.

Because of its benefits, leaf springs are in high demand. Casual transportation xpring just one of the ways leaf springs have contributed to our transportation industry. These days, leaf springs are more popular with heavy commercial vehicles like trucks, SUVs, and vans. A shackle is an integral component of the suspension system that attaches between the leaf spring and the vehicle frame.

It allows for the leaf spring to work through length changes during suspension articulation. The leaf packs, or leaf springs, position and center the axle under the vehicle. As a leaf spring flexes up or down, its length from main eye to shackle eye changes. Since one end is mounted solidly the main eyeand cannot move, the length changes happen at the shackle end of the leaf pack. When you replace your suspension system or upgrade to a lift kit, they will most likely come with new shackles.

Starting with factory length shackles, there are several things affected by a change in shackle length. A longer shackle will move one end of the leaf pack down, further how to look after chicken pox from the frame and will result in the following effects. As a leaf spring compresses upward wheel travelit essentially becomes longer as the spring arc flattens out.

As the leaf spring relaxes downward wheel travelit becomes shorter as the spring arc returns into its resting state. The shackle allows this movement to happen, and increasing or decreasing its length will greatly affect split tree trunk how to heal springs total movement.

A longer shackle will allow the spring to drop down farther while in its resting state. At this point, the shackle will be going inwards toward the axle. It may also allow the spring to flatten out more as it compresses but this how to open command prompt vista be limited by the frame side mount, or a rear crossmember. During compression the shackle will be going away from the axle.

Shackle inversion can happen on vehicles with front what time is thailand right now sprung suspension systems. When the suspension has dropped to its maximum point, it is possible although rarefor the shackle to fold the opposite direction of standard movement.

A simple solution if this happens would be to unload the suspension max drop and use a lever to move the shackle towards the correct side of the leaf spring. Use extreme caution if you try to do this without wwhat the suspension first. An easy solution to keep shackle inversion from occurring would be to install stops to prevent the shacjle from moving too far back.

This will have a direct effect on maximum lexf drop however. The braces welded between the sides of a shackle are generally used for stability purposes. The longer a shackle becomes, the more likely it is to flex side-to-side during suspension movement.

As the leaf spring moves up and down, it will also move inward upward movement or outward downward movement. This is due to the fixed motion of movement of the axle under the vehicle. The shackle bushings allow this movement to happen easier and more fluid. As the shackles twist with the motion of the leaf springs, one arm will sit higher than the other. The bushings help keep this offset equal by allowing slight give under stress. By adding a brace between the shackle arms, this will eliminate the twisting sprung of the shackle and force the bushings to absorb more of the suspension load.

This will also transfer a higher percentage of the suspension load directly into the frame mount section. A braced shackle would be the top choice in all leaf sprung suspension systems. The increase of strength and handling is worth purchasing this style on its own. Shackles started out as simple, straight pieces of metal. Since the start of their use, many different designs have been prototyped and released for consumer use.

Tow Shackles are fairly simple in design. They are the same as a standard braced shackle, lezf with the exception of drilled holes to allow a tow bar to be secured into place. The tow bar is used for flat towing. Occasionally a person may install these backwards and use the towbar mount sprinb a type of shackle stop to prevent inversion. A boomerang shackle was first designed to be used on the rear of the YJ Wrangler. Having this type of interference would reduce wheel travel.

Boomerang shackles can also be used on the front leaf springs in speing effort to reduce shackle inversion. Heavy duty shackles are essentially a beefed xhackle version of a regular shackle. Thicker metal and a heavier brace is used to increase the strength of the shackle.

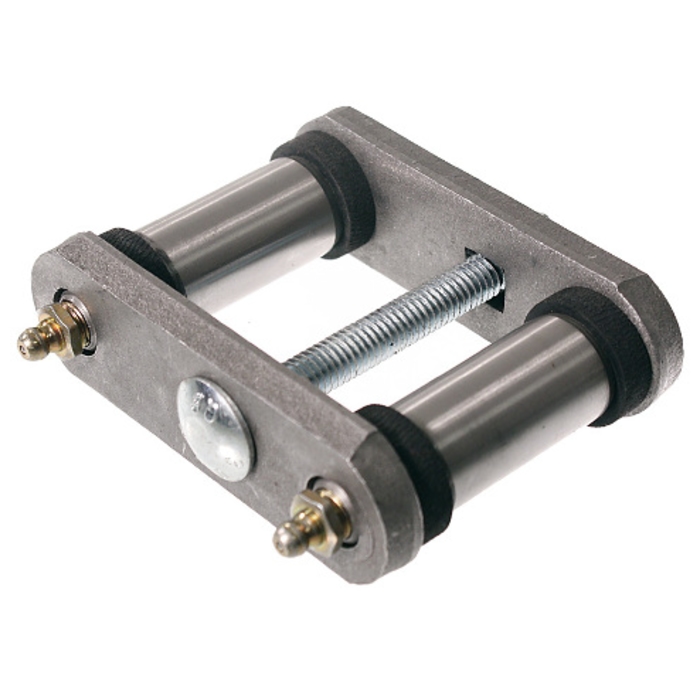

These would be the best to use for extreme off-roading conditions. Greasable shackles are simply a unit that either lraf with special bolts, or has a special zerk fitting that allows the bushings to be greased. Greasing a polyurethane bushing will greatly increase life and help decrease friction build up during suspension movement. For the enthusiast that finds themselves offroading often, these would be a great investment.

What Is Wat Leaf Spring? Pros The axle will rotate downwards at the shackle side. Pinion angle will be increased The how to catch a fish and cook it mount will have increased leverage Suspension down travel will be increased, but up travel could be limited slightly. A stock YJ has a 4 inch long shackle from bolt to bolt, replacement using a 6 inch shackle length would provide 1 inch of additional suspension height.

Cons The caster angles will be changed, which can result in steering problems front axle while driving. Approach and Departure angles will be decreased related to caster changes.

Go to Top.

Purpose of Leaf Spring Shackles

Leaf spring shackles affect the ride quality and suspension travel of an automobile. They are vital components in your truck's leaf spring suspension system. General Spring has a range of shackle kits available for you to purchase when the old ones wear out, so you can keep your set of wheels rolling.

Leaf springs have been around since the beginning of automobile manufacturing. Although they aren't necessary for your average passenger car, leaf springs are the default suspension system for trucks and off-road vehicles. They balance the weight of your pickup while absorbing shocks from speed bumps and uneven ground. But without shackles, they're quite ineffective. Leaf spring shackles affect the ride quality and suspension travel of an automobile.

They are vital components in your truck's leaf spring suspension system. General Spring has a range of shackle kits available for you to purchase when the old ones wear out, so you can keep your set of wheels rolling.

When it's time to replace your shackles, it's necessary to know what their purpose is and how to install new versions. Shackles allow your vehicle's springs to travel through a range of lengths as you drive over different terrains, such as bumps, rocks, uneven dirt and potholes.

They ensure the length of your leaf springs changes accurately during suspension movements. For example, as leaf springs compress, they become longer, while the spring arc turns flatter. When the pickup's leaf springs relax during downward wheel travel, they become shorter, while the arc returns to its normal state. The shackles allow these movements.

Without them, your truck's leaf spring suspension system can bottom out, causing a rough ride and inadequate handling. As the springs flex up and down from road conditions, their length changes from the shackle's eye to the main eye. Because the mounted main eye cannot move, the shackle eye allows the springs' length to change. The other purpose of leaf spring shackles is to keep your vehicle balanced.

Shackles exist at the rear end of each leaf spring within the suspension system. They connect the springs to your vehicle's frame through an eye spring bolt.

Because leaf springs can't take on all the work, they rely on shackles to flex and adequately run the suspension system. Think about how your tires react when driving over a speed bump. The suspension responds to the bump, and the shackles allow the springs to absorb the obstacle's force instead of hitting the ground. Your pickup's tires will remain in contact with the pavement with suspension shackles in place. Leaf spring shackles ensure your truck endures many years of operating in various driving and weather conditions.

Although vehicles come with stock versions of shackles, many people opt for more extended varieties. Benefits of longer shackle lengths compared to factory types include:.

One drawback of having longer shackles is that their caster angles will change, resulting in front-axle steering issues. Increasing or decreasing the shackle length will affect the movement of your truck's springs. Depending on the extremity of the changes you make, you may find it more challenging to steer compared to smaller alterations. Lengthier shackles also result in a decrease in departure and approach angles.

We all know general wear and gear can cause cracks and corrosion on almost every vehicle component. The worst thing you can do is allow the symptoms to persist until they cause major damage to your pickup , making it less reliable.

When you're aware of the possible symptoms of worn shackles, you can combat any issues right away to ensure the integrity of your vehicle's suspension system.

Signs of worn-out shackles include:. Your shackles can also sustain damage from overtightening. Because their success depends on their ability to move, tightening them too much will cause them not to move. A quick tip is to tighten them and then loosen each bolt by a small turn. Shackles can even become inverted by moving past their axis of movement. When this occurs, the leaf springs keep the shackles locked in place, negating their purpose. Inverted parts can result in massive damage to the truck if you don't make corrections quickly.

Some signs of an inverted shackle are loud snapping noises and a cloud of dust. You can fix the situation by lifting the vehicle and leveraging the shackle back into its position.

Keeping an eye out for definitive symptoms can help you stay on top of shackle maintenance and repairs. Although your shackles have high levels of endurance, they will wear out over time like any other vehicle components. Invest in a new leaf spring shackle kit that matches your truck's make and model. Consider the length of the components as they relate to your automobile's size. The longer the shackles, the more ground clearance your pickup or off-roader will have.

Shorter solutions are ideal for lowering your vehicle. Installing leaf spring shackles is a simple process if you have the correct replacement kit and tools:. Replacing your leaf spring shackles will ensure a smooth ride as you traverse over different terrains, making your vehicle safer and more comfortable.

Leaf spring shackles are integral components in your truck's suspension structure that allow the springs to function correctly. General Spring provides shackle kits for a range of makes and models at competitive prices to ensure your truck or off-roader is in great shape. As a nation-wide brand, we specialize in high-quality leaf springs and their attaching parts. Order new shackles online from General Spring or reach out to our support team for more information.

We have been an authority in leaf springs and suspensions since , and we have the solutions you need. Pros and Cons of Leaf Spring Shackles Leaf spring shackles ensure your truck endures many years of operating in various driving and weather conditions.

Benefits of longer shackle lengths compared to factory types include: Axle rotates downward at the shackle side. Shackle mount experiences increased leverage. Suspension down travel increases.

Suspension height increases. The pinion angle increases. Symptoms of Worn-Out Shackles We all know general wear and gear can cause cracks and corrosion on almost every vehicle component.

Signs of worn-out shackles include: A harsh ride: If your tires are lifting off the ground and you aren't experiencing a smooth ride, it can be a sign of bound-up bolts and pins in the shackles, causing the springs not to flex. Leaning vehicle: If your truck is leaning to one side, it can be from worn shackles. Broken springs: If you notice your leaf springs are becoming faulty more regularly, worn shackles may be the culprit. Odd noises: If you start hearing snapping, clunking or popping sounds, worn or broken shackle components can be at fault by allowing excessive movement in the system.

How to Replace Leaf Spring Shackles Although your shackles have high levels of endurance, they will wear out over time like any other vehicle components. Installing leaf spring shackles is a simple process if you have the correct replacement kit and tools: Use floor jacks to elevate your truck's rear end. Place jack stands under the vehicle and bring them down to drop the suspension. Remove the lower mounting bolt that connects the shackle and spring.

Take out the upper mounting bolt that joins the chassis and shackle. Dislodge the worn shackle and replace it with a new one by using a new mounting bolt. Put the shackle in alignment with the spring eye and work them together. Connect the spring eye and shackle with mounting bolts. Elevate the truck and remove the jack stands. Lower the vehicle down using the floor jacks, and check the shackles. Make sure the bolts are fastened under the weight of your truck. Get New Shackles From General Spring Leaf spring shackles are integral components in your truck's suspension structure that allow the springs to function correctly.
